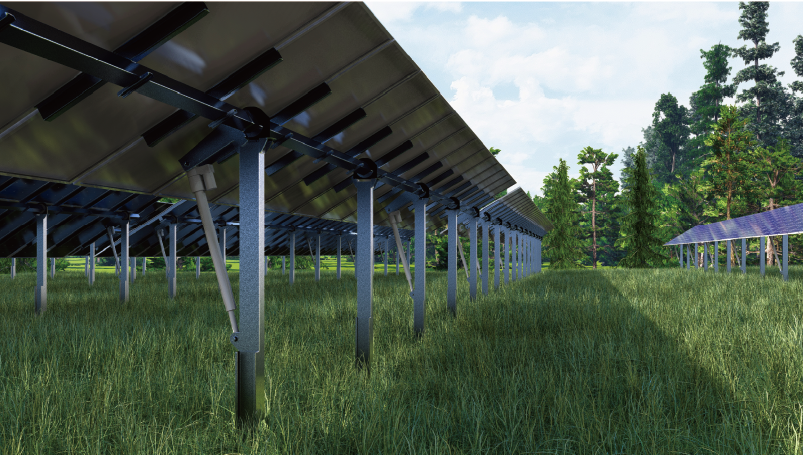

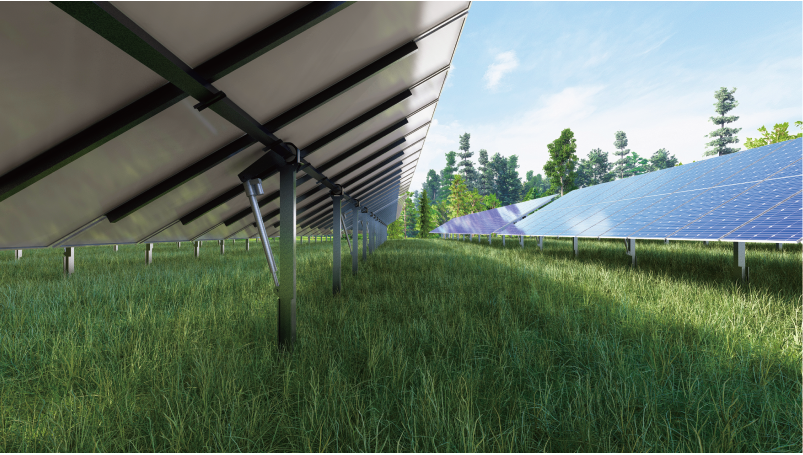

Solar Tracker
One control system can control several push-pull rods, enabling the entire solar module array to track the sun automatically. It causes a low rate of failure and reduced maintenance costs. It provides a streamlined and straightforward installation method for maintenance, relocation, and repairs.
Optimized Power Generation:
Customized System Specifications Available:It can be designed according to the customer’s specific requirements.
Reduced Snow and Dust Accumulation:The rotating feature minimizes the build-up of snow and dust.
The system's rotation, guided by the Astronomical algorithm, maintains consistent sunlight exposure, ensuring stable power generation.
Wind Speeds Safety Protection:
Modules go horizontal at high wind speeds to minimize damage.
Customized System Specifications Available:It can be designed according to the customer’s specific requirements.
Reduced Snow and Dust Accumulation:The rotating feature minimizes the build-up of snow and dust.
ST-P1
ST-P2
Technical Data
| Tracking type | Single Axis Tracker | Snow Load | ased on the local snow load |
| Installation Site | Flat floor, General land | Foundation | Steel Sheet Pile Foundation, Steel Sheet Foundation Embedded In Concrete, Concrete Foundation, Screw Pile Foundation |
| Tilt Angle | 45°-135° (can be customized) |
Drive | Actuator |
| Applicable Solar Modul |
All available modules |
Time to recover | Adjustable |
| Panel Layout |
Portrait |
Sensors | Wind direction, Wind speed, and tilt angle. |
| Module Dimension | Length: 1650-2300 mm Width: 950-1200 mm |
Stow position | Flat stow |
| Ground clearance | 170cm-210cm | Material | Zn-Al-Mg Coated Steel Nippon Steel Corp. ZAM®-EX, YiehPhui Corp. PhuizerMax®(PM) |
| Array configuration | 1 module in portrait or 2 modules in portrait | Fastener Material | Medium carbon steel (Tin-zinc alloy plating), SUS 304 |
| Ground Coverage Ratio | Freely configurable, typical 33%-52% | Warranty | 25 years quality assurance under certain environment |
| Wind Load | Based on the local wind load | Motor type | DC and AC available |
Product Specification
Unit: mm
| 1 module in Portait |
2 module in Portait | |||||||||
| A | 1600~1800 | 1800~2100 | 2100~2400 | 1600~1800 | 1800~2100 | |||||
| B |
1700~2100 | 1700~2100 | 1800~2100 | |||||||
| C |
45° | 55° | 45° | 55° | 45° | 55° | 45° | 55° | 45° | 55° |
| D | 3900 |
4000 | 4500 | 4700 | 5100 | 5400 | 7700 | 8000 | 8900 | 9500 |

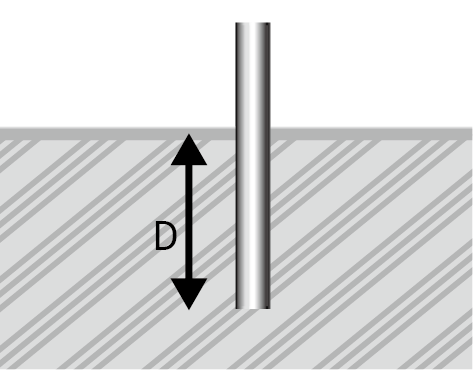

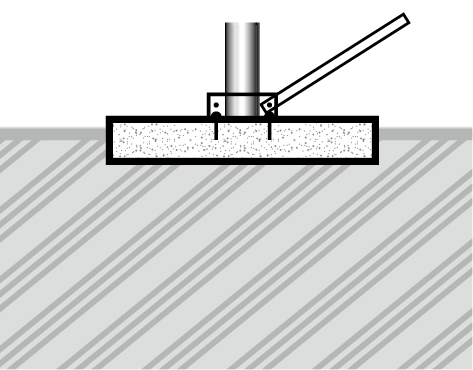

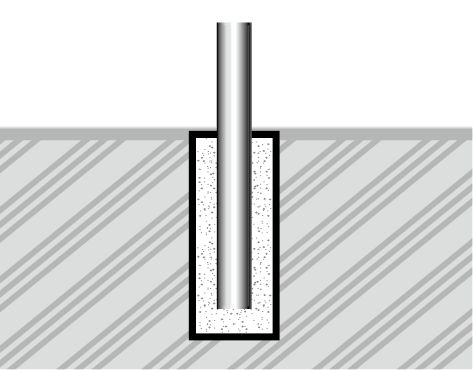

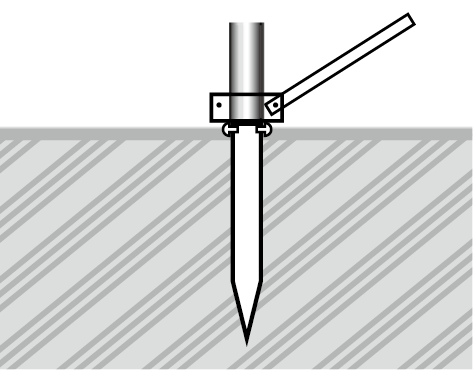

Foundation Types

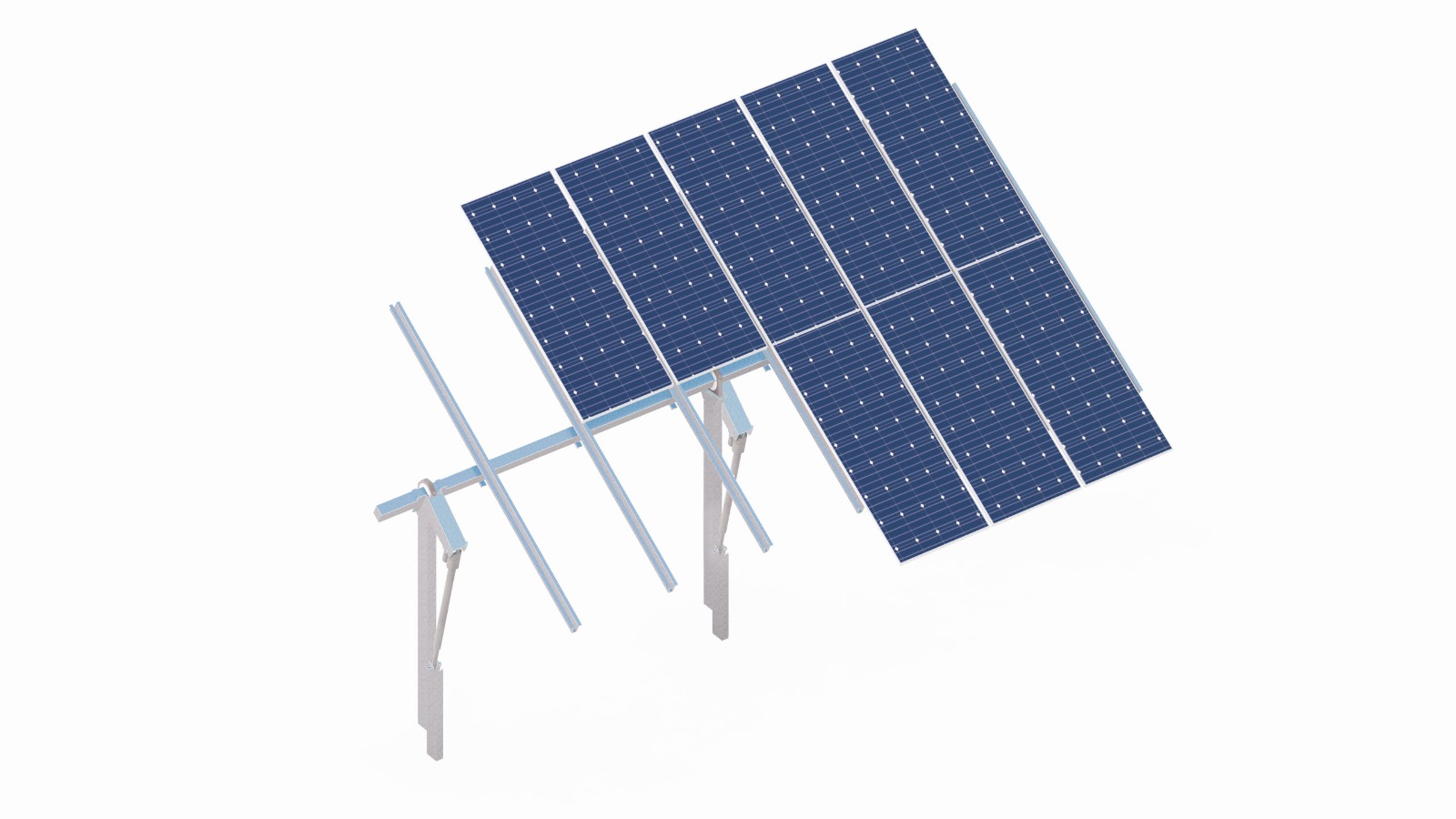

Easy Install

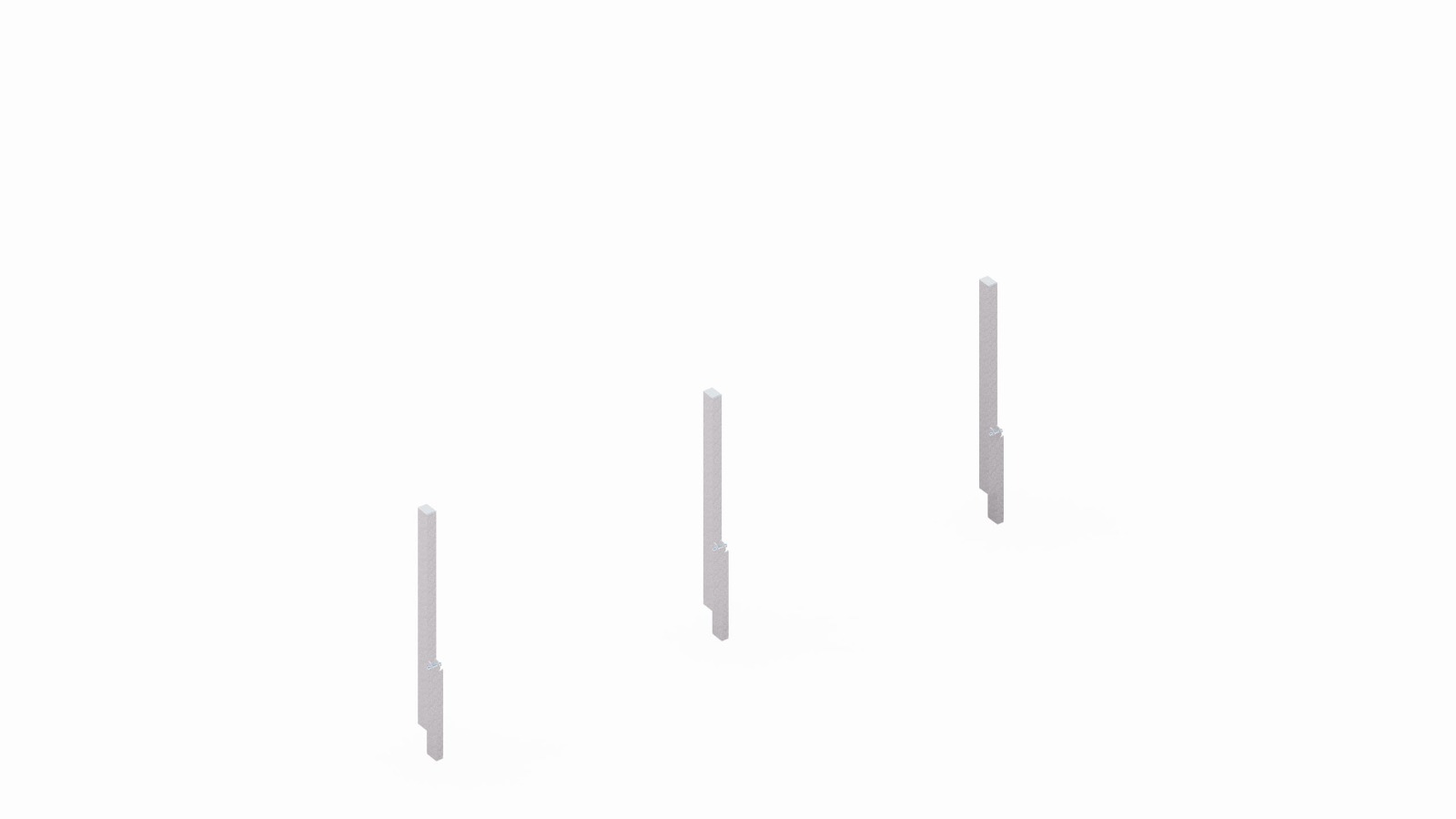

Install the columns
.jpg)

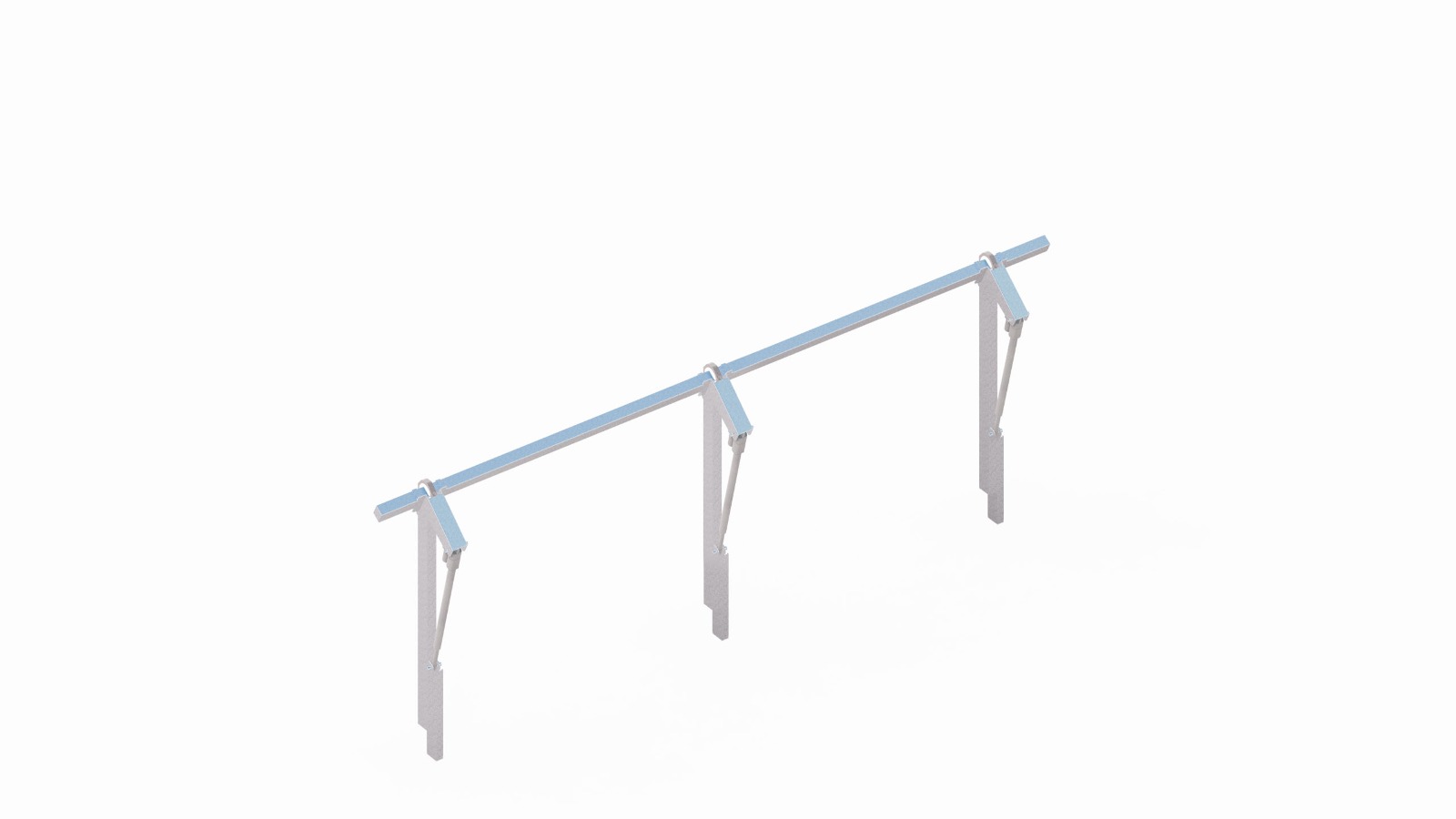

Secure the purlin and install linear Actuator.
