Solar Fence

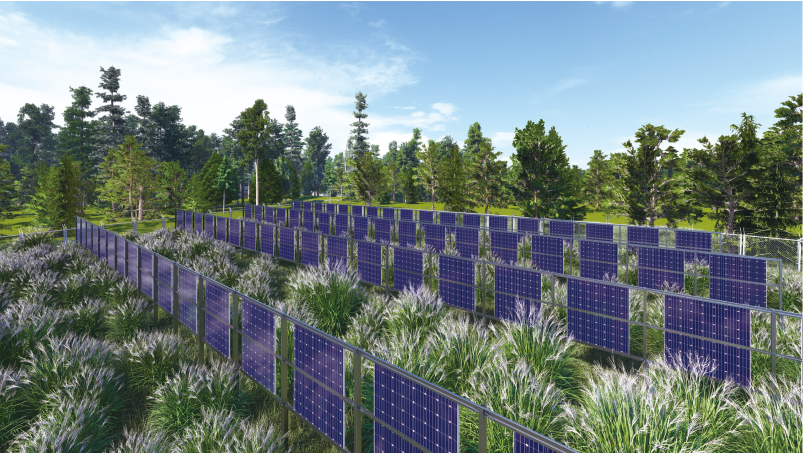

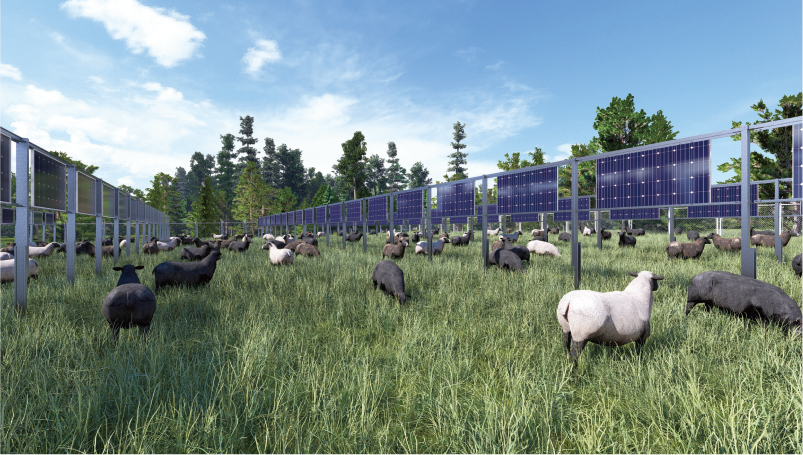

Optimally utilizing land for both agricultural and energy purposes, achieving a high land use rate with minimal impact on agricultural yield.
Minimizing shadow impact on panels through optimized design with bifacial modules
It enhances the overall sunlight utilization rate, ensuring optimal energy production and efficiency for the solar panels.
Minimal accumulation of dirt and snow on the panels
It maintains the panels, contributing to the long-term performance and reducing the necessity for frequent cleaning or snow removal.
SF-P
SF-L2
Technical Data
| System Name | Solar Fence | Fastener Material | Medium carbon steel (Tin-zinc alloy plating), SUS 304 |
| Installation Site | General terrain, Flat floor, Hillside | Module Dimension | Length: 1650-2400 mm Width: 950-1400 mm |
| Tilt Angle | 90° |
Patent | Patent no. M636783 |
| Applicable Solar Modul |
All avaiable modules |
Warranty | 25 years quality assurance under the certain environment |
| Panel Layout |
Landscape / Portrait |
Foundation | Steel Sheet Pile Foundation, Steel Sheet Foundation Embedded In Concrete, Concrete Foundation, Screw Pile Foundation |
| Material | Zn-Al-Mg Coated Steel Nippon Steel Corp. ZAM® -EX, YiehPhui Corp. PhuizerMax®(PM) |

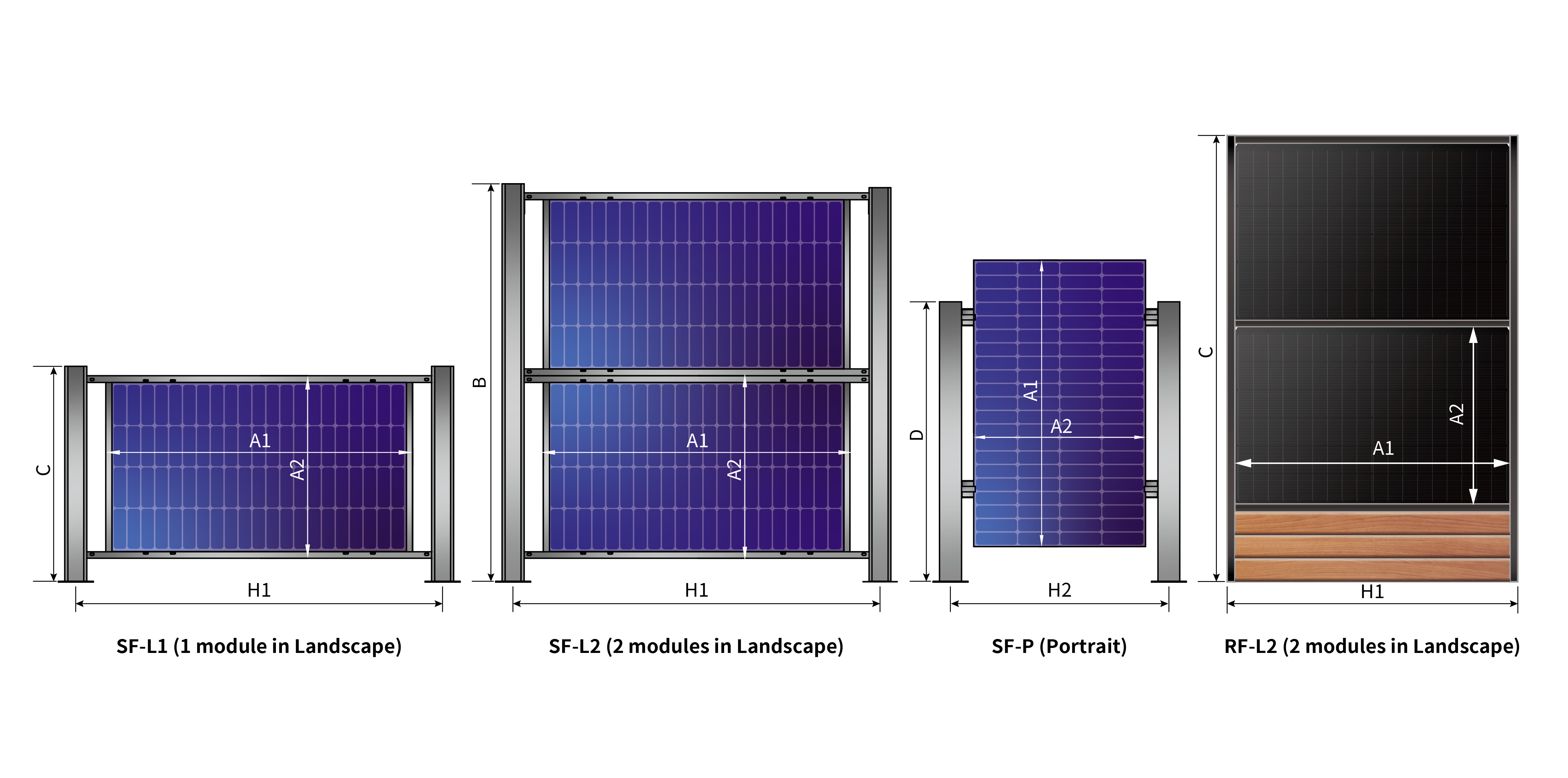

Product Specification
Unit: mm
| A1 |
A2 |
B |
C | D | H1 | H2 |
| 1600~1800 |
950~1100 | 2300 | 1200 | 1400 | 2200 | 1500 |
| 1800~2100 |
1100~1250 | 2600 | 1350 | 1700 | 2500 | 1650 |
| 2100~2400 |
1250~1400 | 2900 | 1500 | 2000 | 2800 | 1800 |
Foundation Types
Easy Install

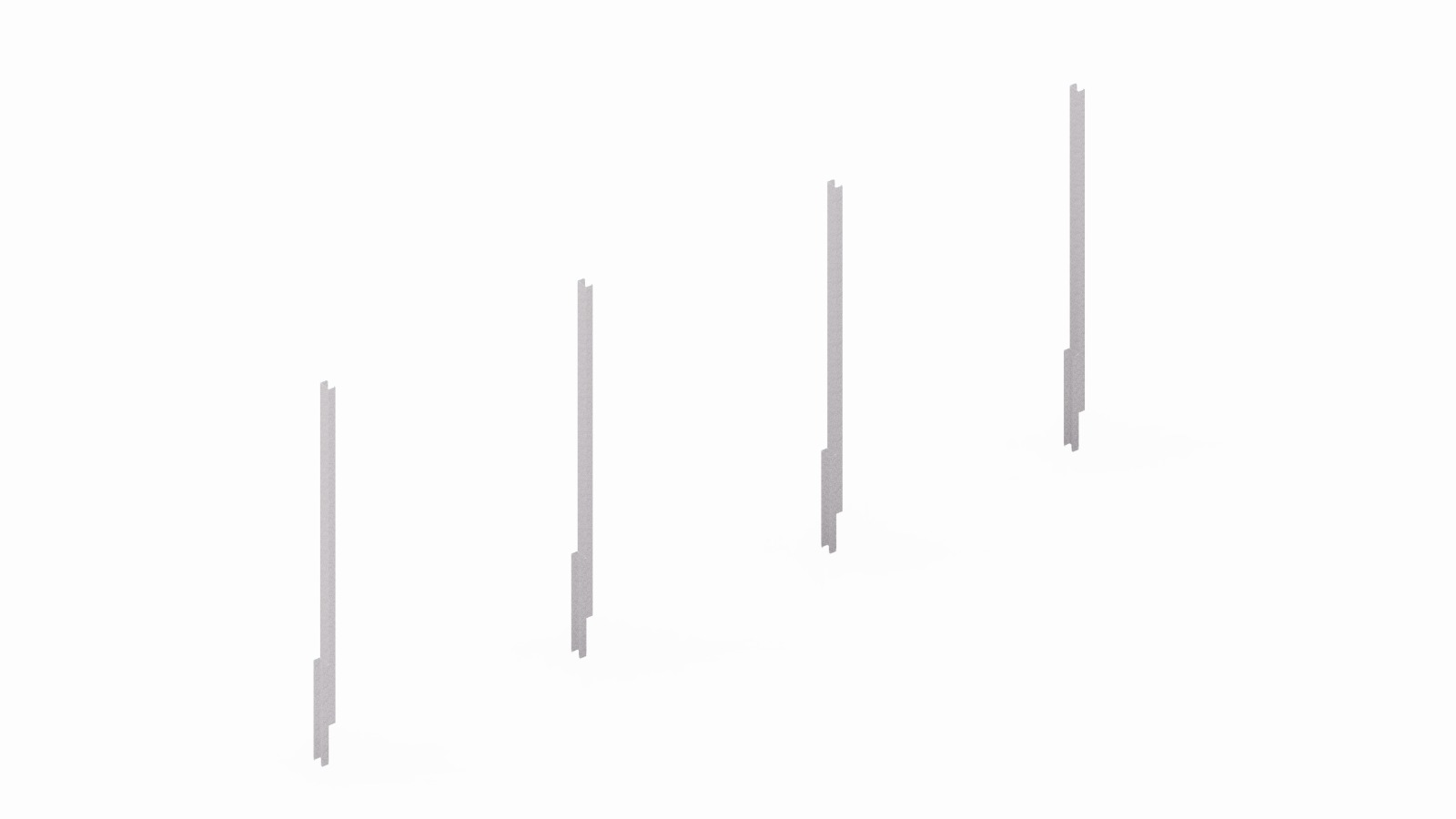

Install the foundation and columns.

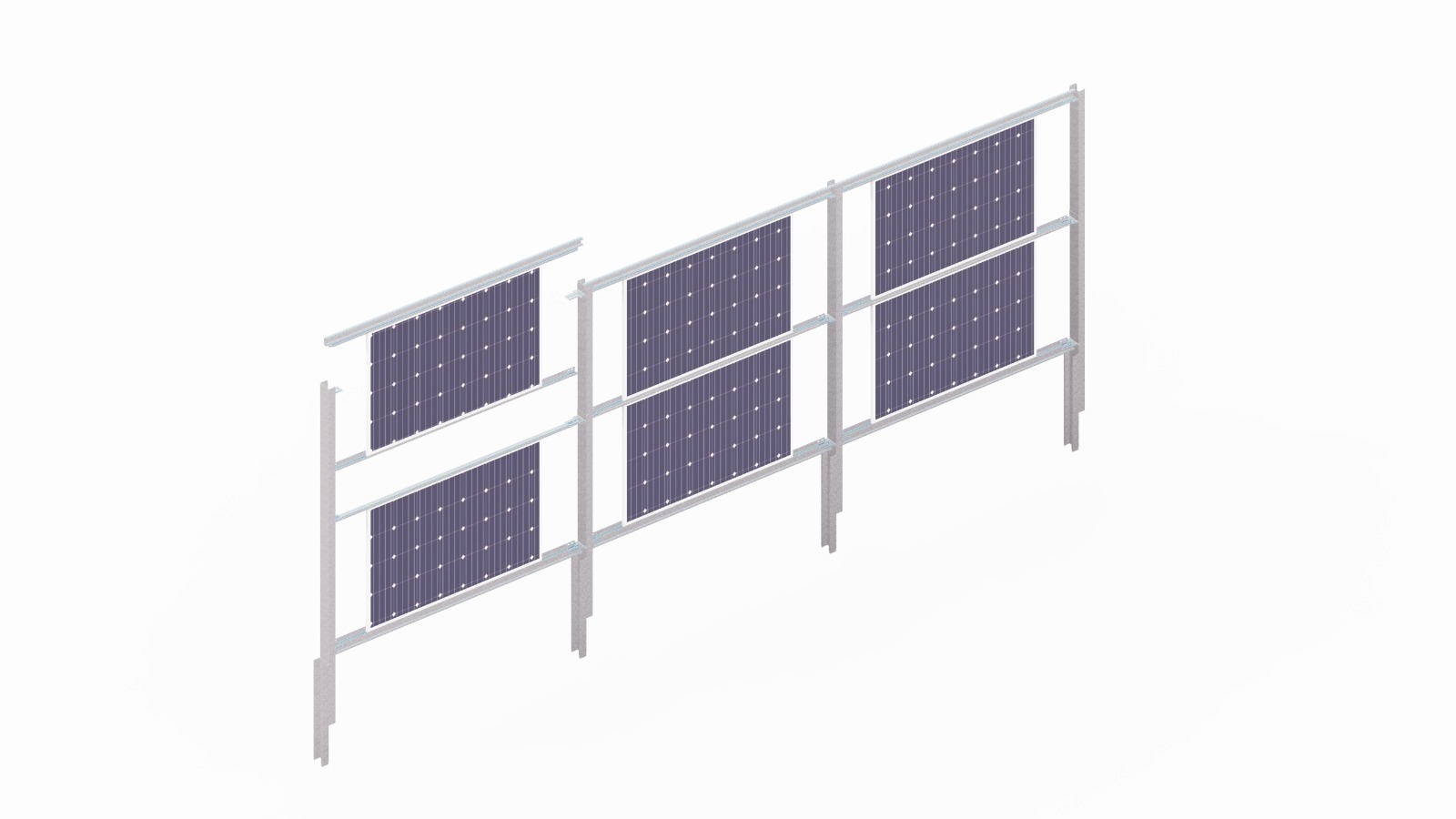

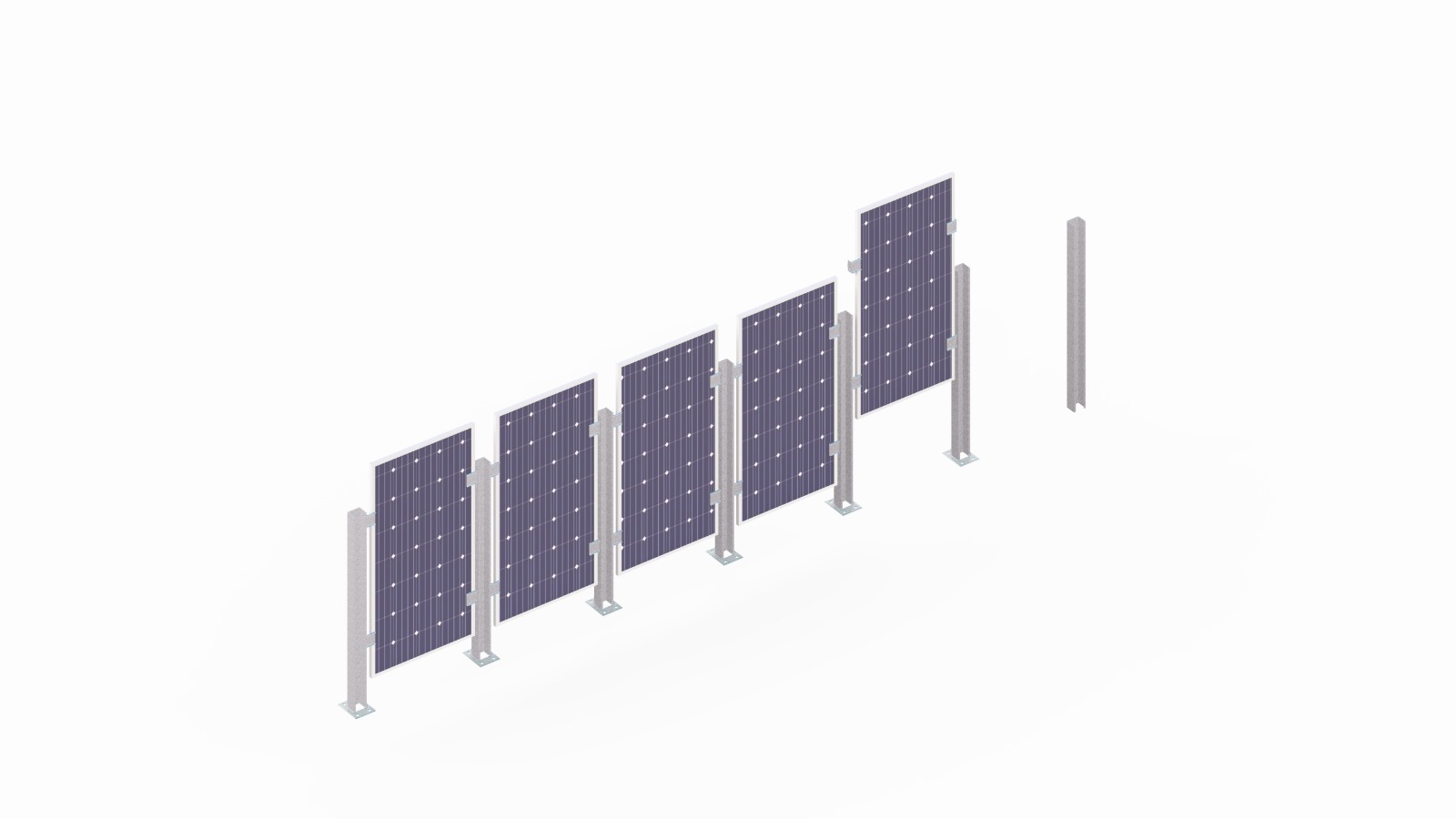

Install the module brackets on the columns (Portrait)
