TECH STELL Co. Ltd.
Looseproof Patent
Core Competencies
Aerospace Certification
Certified by NAS3350 and European Junker Vibration Testing Standards.
Global Authority
Japan NETIS Certified / ISO 9001 Quality Assurance
Resists Cat. 17 Winds
Paired with J-Systems mounting structures, verified by extreme gust pressure testing.

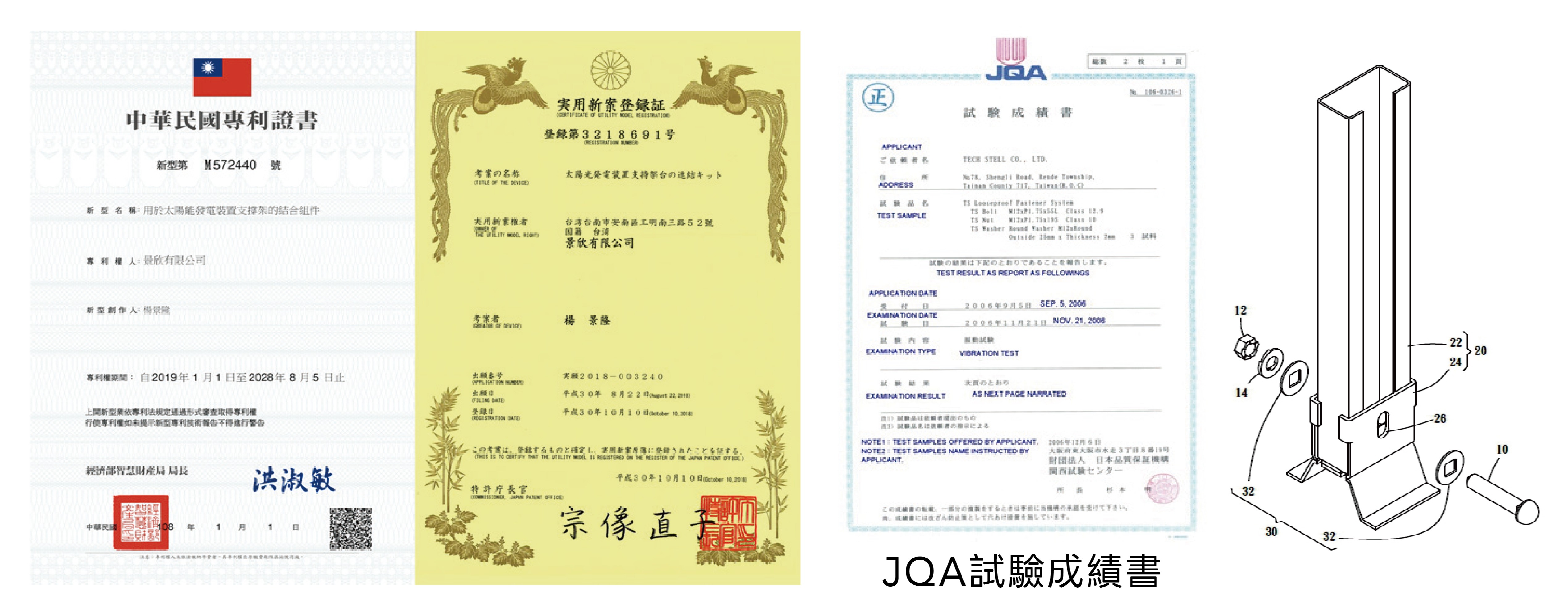

Global Patents
Made in Taiwan by the TS brand, with patent protection in over 30 countries.
Design Features

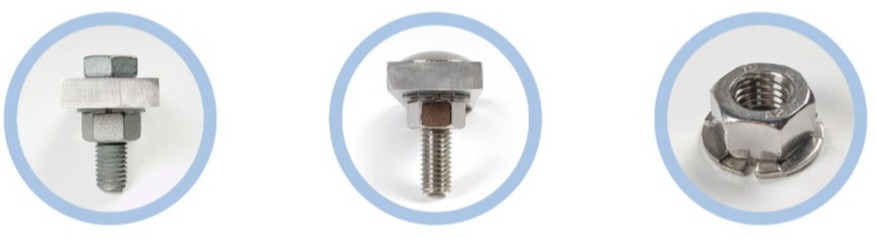

Utilizing TS anti-loosening fasteners, the design leverages six wedge-shaped surfaces on the washers to generate reverse mechanical force (converting lateral force into longitudinal tension). Simultaneously, 12 serrated lines on the opposite surface grip the substrate firmly, achieving stable torque and superior anti-loosening performance with ease.
Premium Material
Engineered from high-strength Class 8.8 medium carbon steel, featuring an advanced Zinc-Tin alloy coating for superior corrosion protection.
J-Systems Locking Patent
Material: SUS304 Stainless Steel (ISO Class 70). Feature: Equipped with an insulation gasket to prevent galvanic corrosion caused by potential differences between dissimilar metals. This technology is one of our core patented inventions.
Installation & Fastening Precautions
1
The wedge-shaped surfaces of the nut and washer must be aligned face-to-face.
2
Manually thread the nut by 3 to 5 turns before using a power wrench or fastening tool for final tightening.
3
Select the correct socket size: use a 13mm socket for M8, 17mm for M10, and 19mm for M12 fasteners.
4
Ensure the socket is properly aligned and fully engaged with the nut before initiating the tightening process.
5
Use a low speed (under 2,500 RPM) during fastening to prevent coating damage. Do not use impact wrenches.
