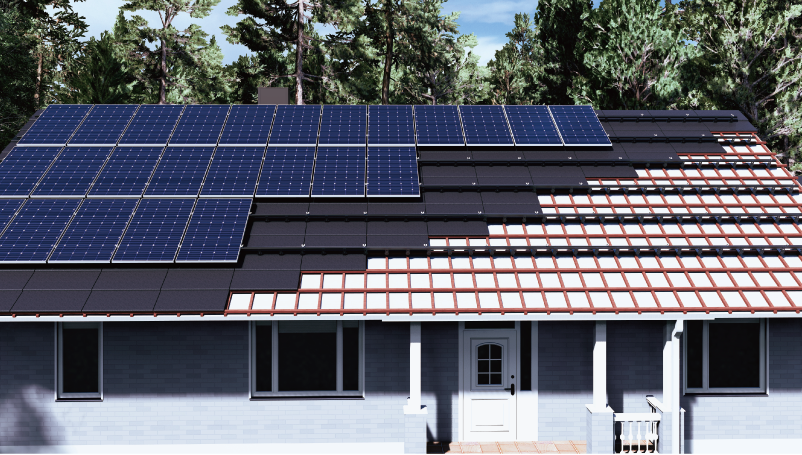

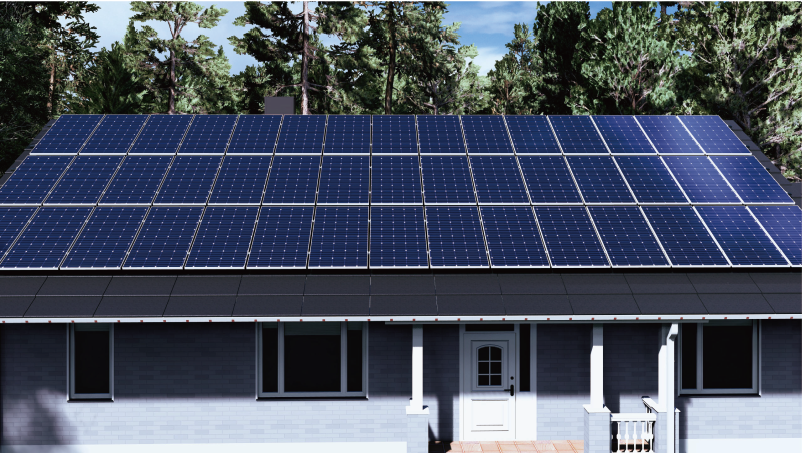

Pitched Tile Roof
Engineered for exceptional durability and easy installation, our roof hooks are designed to support heavy loads and accommodate solar panels on various tile types.
We offer this component, which can elevate the system by 4.5mm, promoting enhanced ventilation between the roof and solar modules.
Compatible with all types of tile roofs without drilling holes.
Our unique design can be smoothly fitted without the need for drilling, eliminating the risk of leaks.
Professional design and the use of durable Zn-Al-Mg coated steel guarantee the stability and robustness of the structure.
Technical Data
| System Name | Pitched Tile Roof | Panel Layout | Landscape / Portrait |
| Roof type | Pitched Tile Roof | Module Dimension | Length: 1650-2300 mm Width: 950-1200 mm |
| Tilt Angle | According to the roof slope (Can be customized) |
Material | Zn-Al-Mg Coated Steel Nippon Steel Corp. ZAM®-EX YiehPhui Corp. PhuizerMax®(PM) |
| Wind Load |
< 60 m/s (can be customized) |
Fastener Material | Medium carbon steel (Tin-zinc alloy plating), SUS 304 |
| Snow Load | < 1.6 kN / m2 (can be customized) |
Warranty | 25 years quality assurance under certain environment |
| Applicable Solar Module | All available modules |
Multiple types

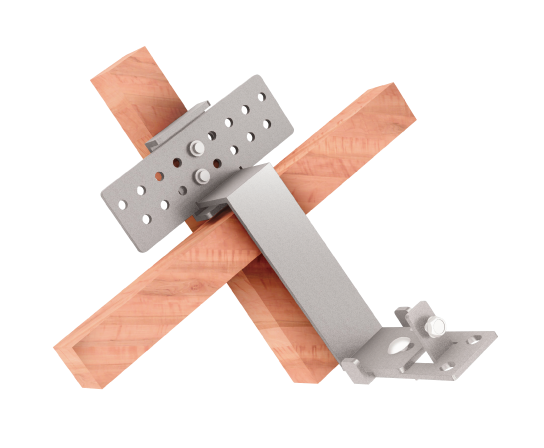

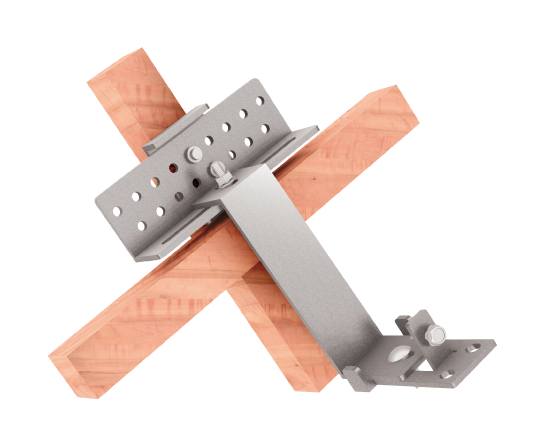

Type A:
Fully Adjustable Type Hook
This hook offers flexibility in both height and width adjustments. With two individual parts adjustable in height and one in width, it is suitale for various tile roofs.

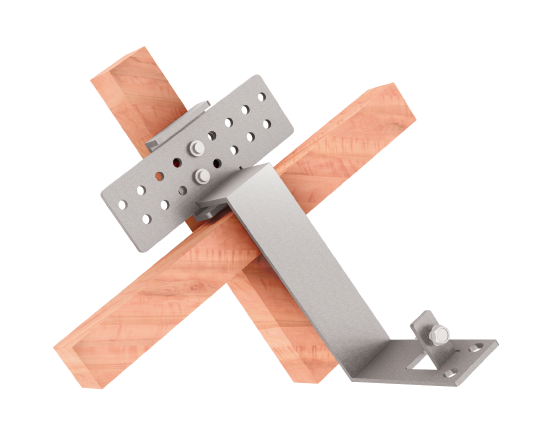

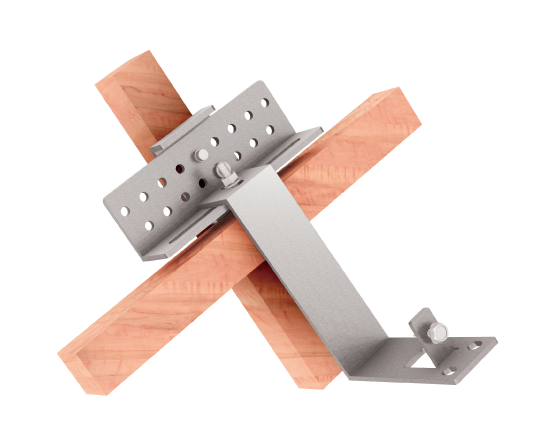

Type B:
Tile Thickness Adjustable Type Hook
This hook can be adjusted based on the thickness of the tile, providing adaptability to different roofing materials.
Type C:
Fixed Type Hook
Designed for different roof types, we offer various fixed hooks.
Type D:
Height Adjustable Type Hook
With multiple height options, this hook is suitable for various tile roof installation systems.

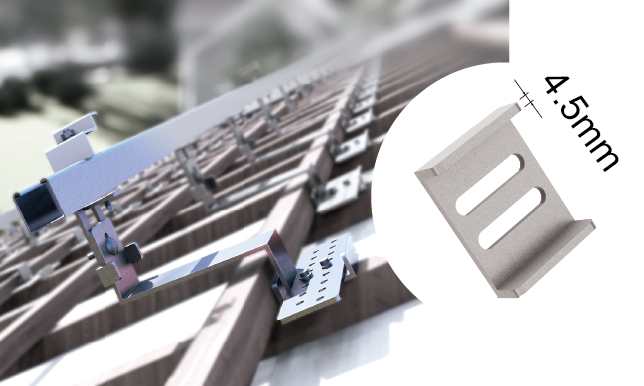

Elevating Component
It can increase the height by 4.5 mm.

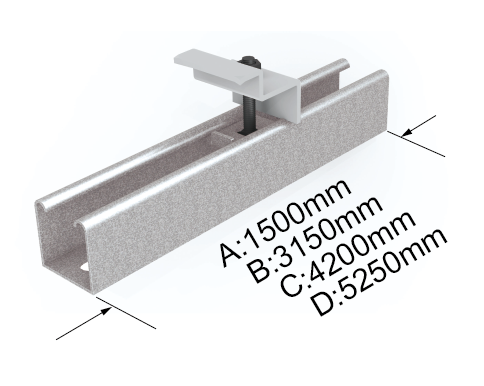

Rail Length
Offer four rail dimension length options.
