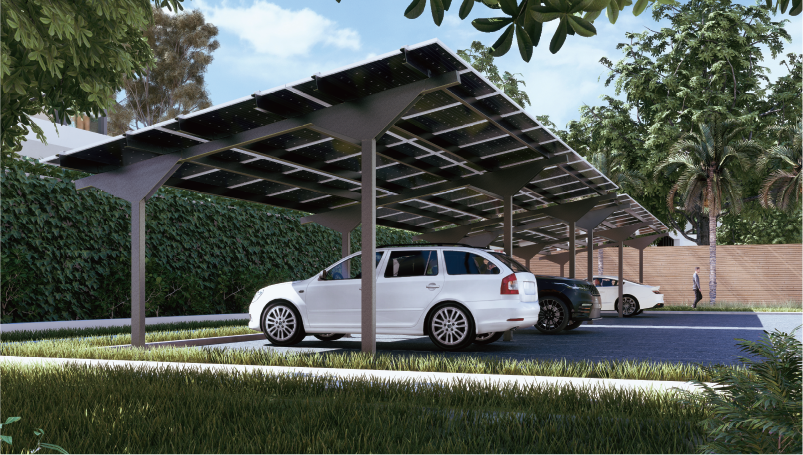

Carport
The waterproof solar carport incorporates specialized components to efficiently drain rainwater, offering excellent protection against rain and water leakage through its unique gutter design.

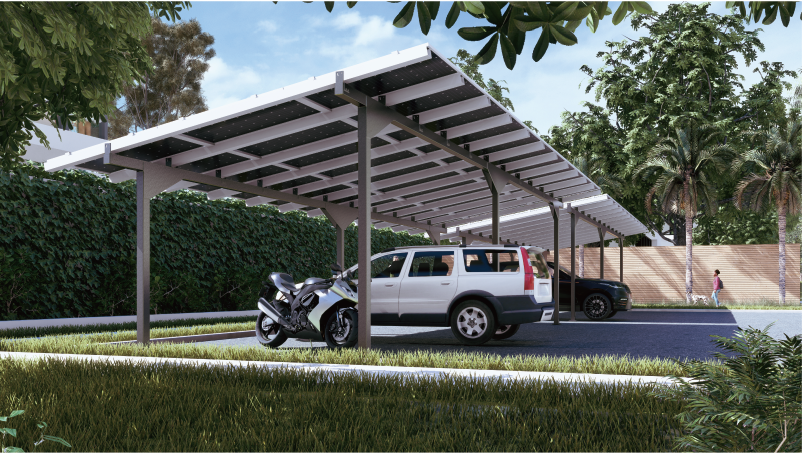

Waterproof design
The innovative waterproof structure includes guiding gutters to enhance its waterproof function effectively.

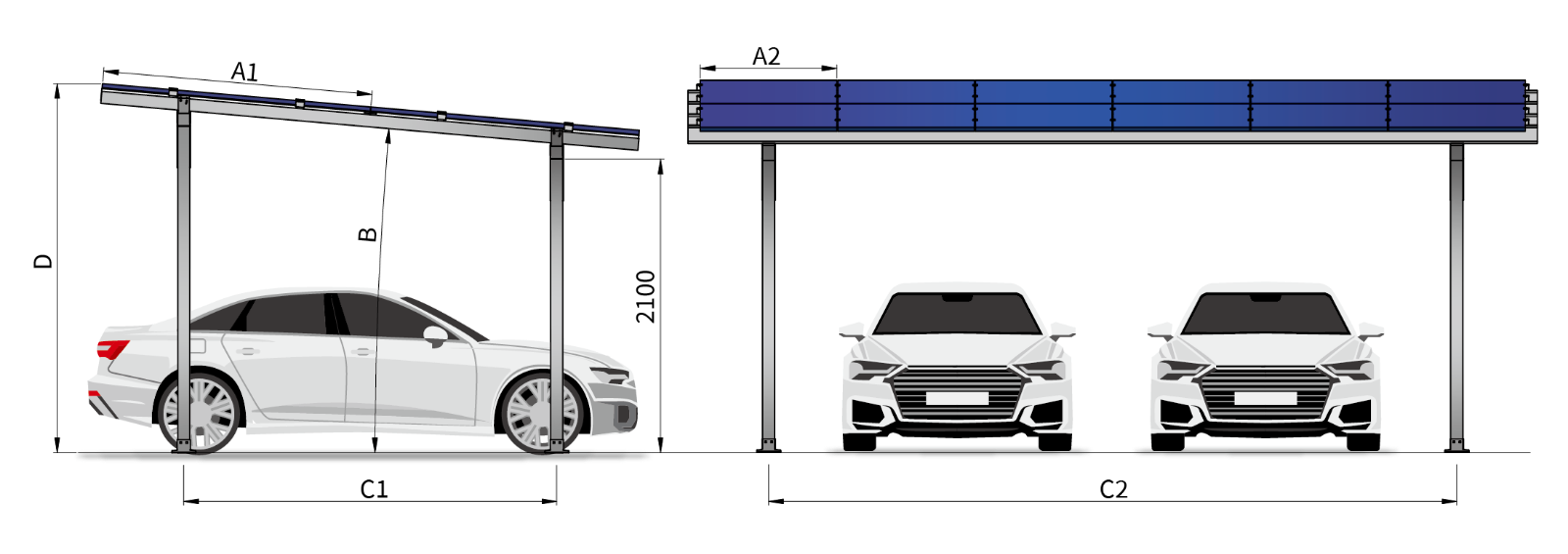

Customized Solutions for both one and two vehicles parking space.
Our customized solutions cater to different customer projects, featuring mounting systems specifically designed for accommodating dual vehicles.
Carport System
Waterproof Carport
Technical Data
| System Name | Carport System Waterproof Carport |
Foundation | Steel Sheet Pile Foundation, Steel Sheet Foundation Embedded In Concrete, Concrete Foundation, Screw Pile Foundation |
| Installation Site | Ground, Flat roof of factories, residences and parking lots | Construction height | Minimum 2100 mm |
| Tilt Angle | 5°- 25 °( Personalizabil ) | Column spacing | Minimum 5200 mm |
| Wind Load | <60 m/s ( Personalizabil ) | Column steel | Square Steel |
| Snow Load | <1.6 kN/m2 ( Personalizabil ) | Material | Zn-Al-Mg Coated Steel Nippon Steel Corp. ZAM®-EX, YiehPhui Corp. PhuizerMax®(PM) |
| Waterproof rate | 95% | Fastener Material | Medium carbon steel(Tin-zinc alloy plating), SUS304 |
| Applicable Solar Module | All available modules | Patent | Patent no. 202017106429 Patent no. 202017106048 Patent no.1801229 |
| Panel Layout | Carport: Landscape/ Portrait Waterproof carport: Portrait |
Warranty | 25 years quality assurance under certain environment |
| Module Dimension | Length: 1650-2400 mm Width: 950-1400 mm |
Product Specification
Unit: mm
| A1 |
1600~1800 | 1800~2100 | 2100~2400 | ||||||
| A2 |
950~1100 | 1100~1250 | 1250~1400 | ||||||
| B |
5° | 10° | 15° | 5° | 10° | 15° | 5° | 10° | 15° |
| C1 |
3500 | 3500 | 3500 | 4000 | 4000 | 4000 | 3500 | 3500 | 3500 |
| C2 | <5500 | <5500 | <5500 | <6250 | <6250 | <6250 | <5600 | <5600 | <5600 |
| D | <2800 | <3200 | <3600 | <2900 | <3300 | <3700 | <2800 | <3100 | <3400 |
Foundation Types

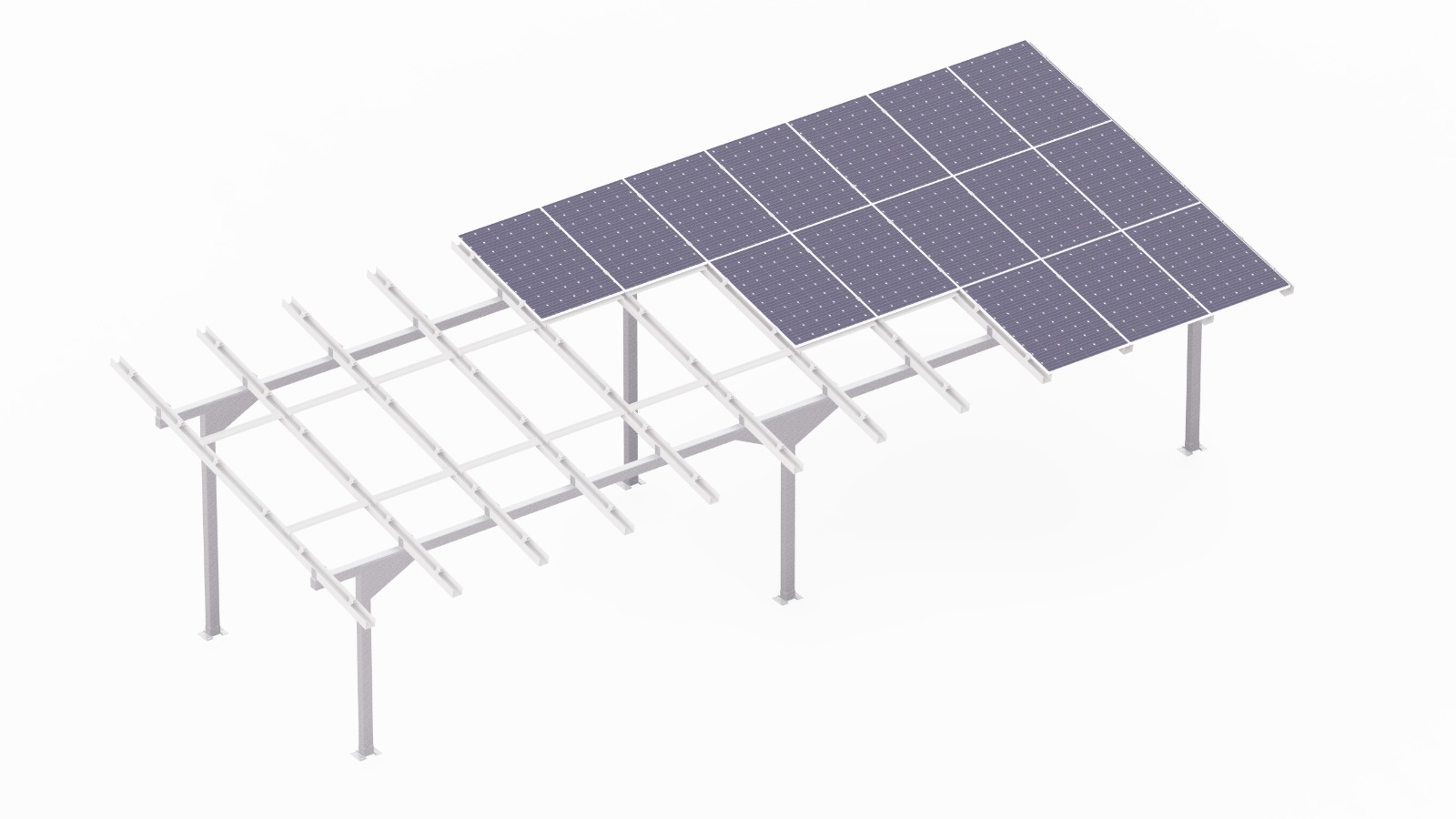

Easy Install

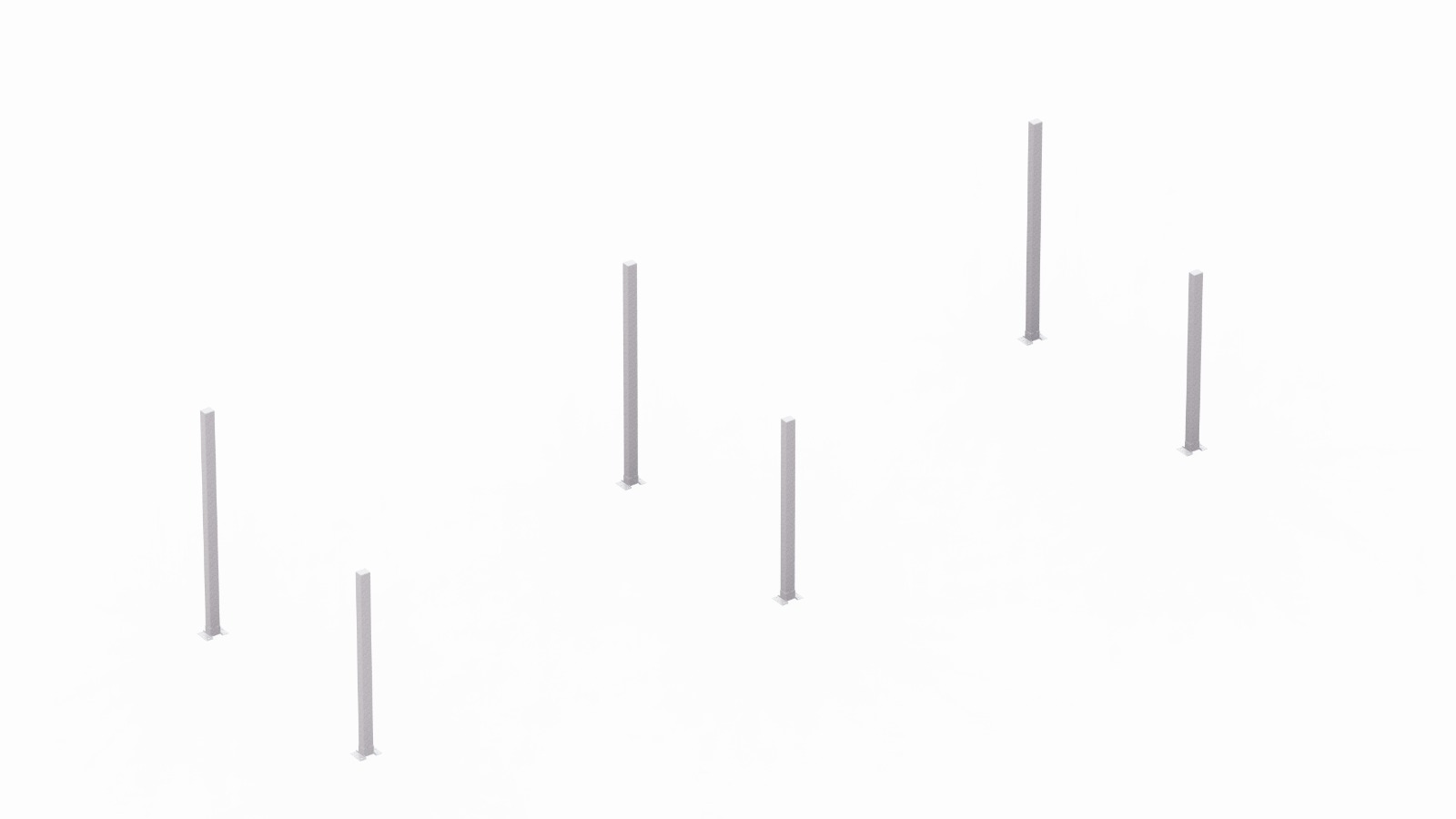

Install the columns.

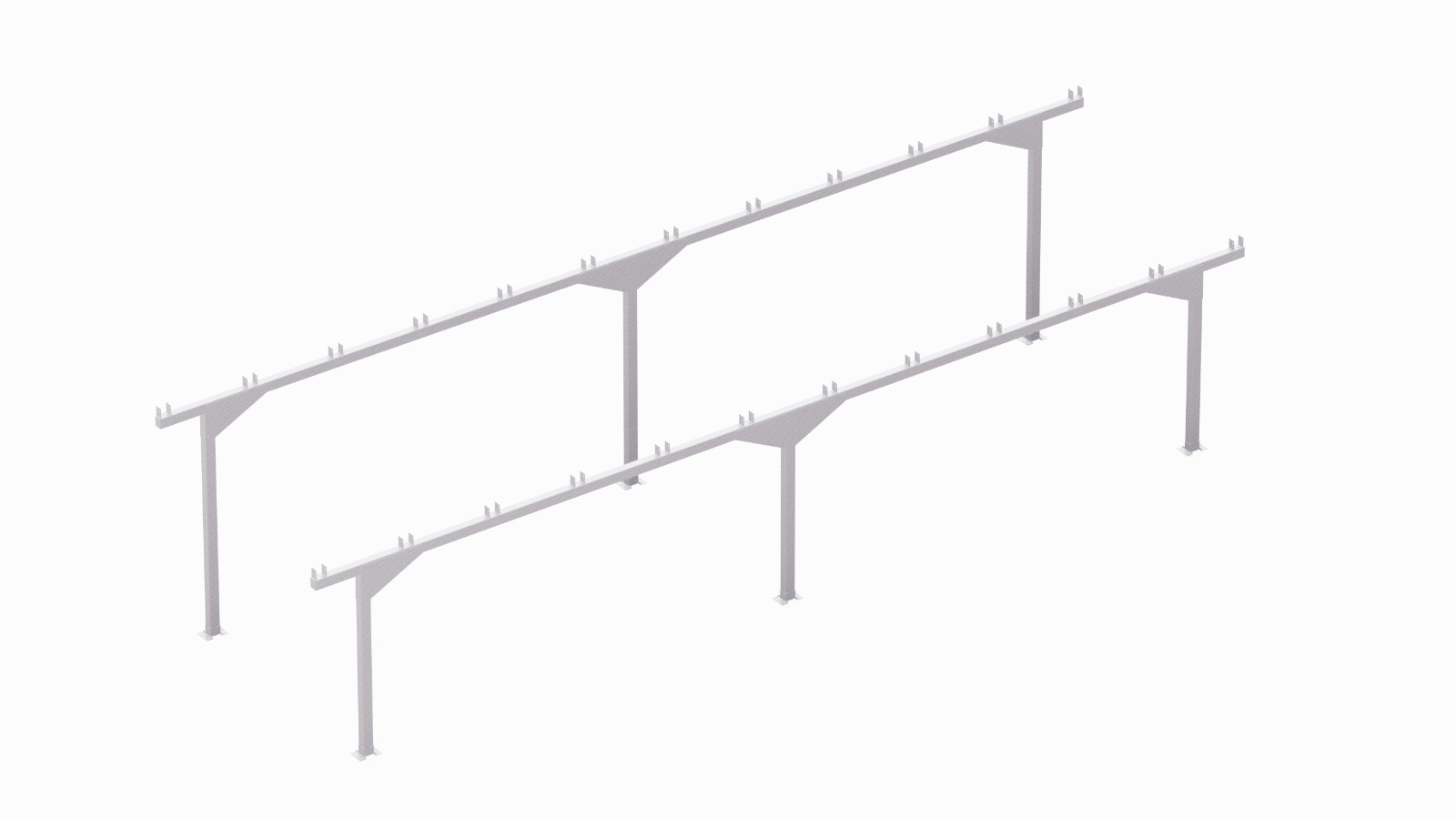

Install rafters
