Steel Materials & Accessories
Steel Overview
Note: Standard Specifications With Customizable Options Avaiable.
C-shaped steel
Square steel
Angle steel
U rail
H-beam
Steel Plate

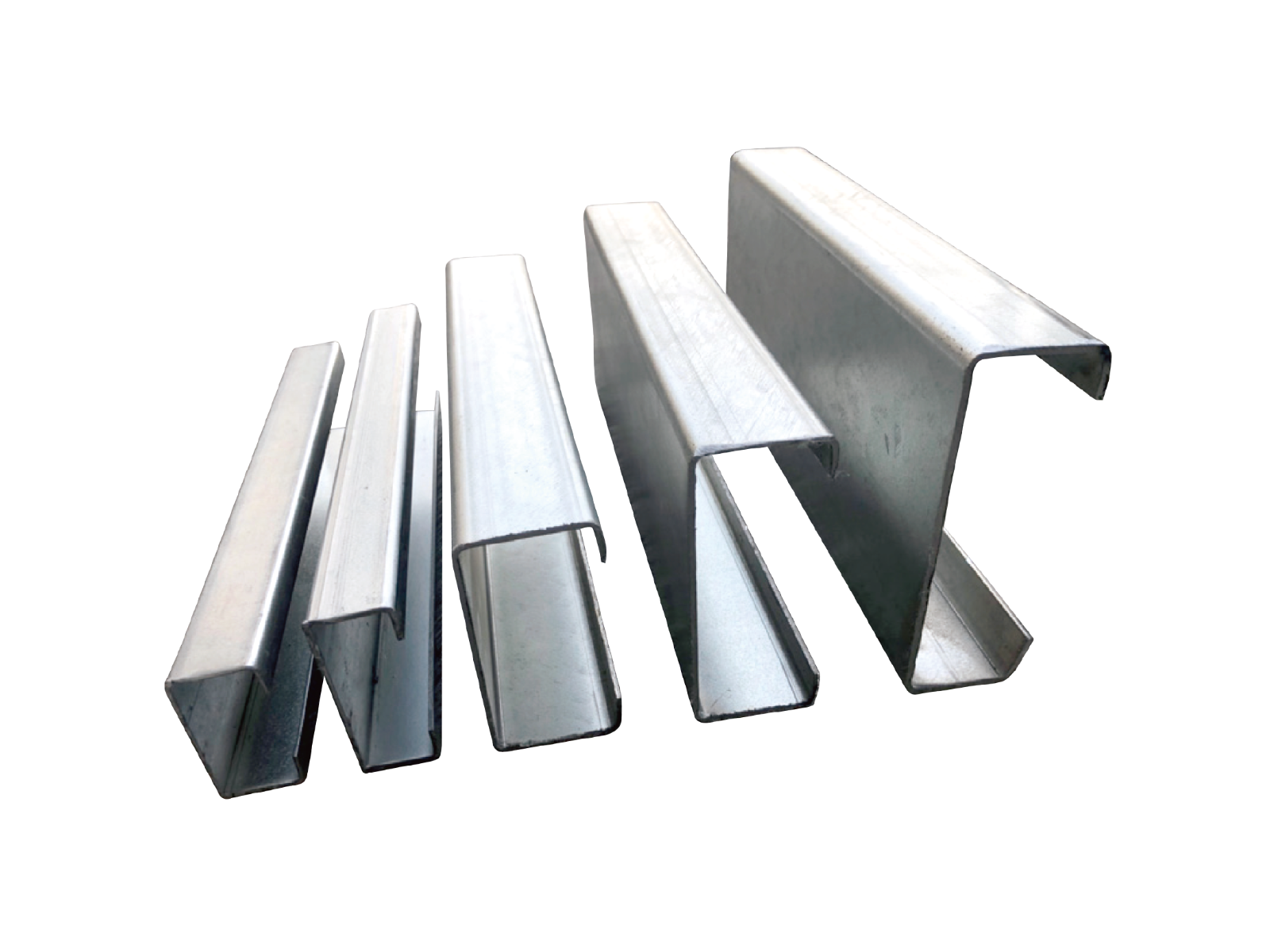

C-Shaped steel
| Product Specification(mm) |
Thickness(mm) |
| 60 X 30 X 15 | 1.6 |
| 75 X 45 X 15 | 2.3 /3.2 |
| 100 X 50 X 17 | 2.3 /3.2 |
| 100 X 65 X 17 |
2.3 /3.2 |
| 125 X 50 X 17 | 2.3 /3.2 |
| 125 X 65 X 17 |
2.3 /3.2 |
| 125 X 100 X 10 | 2.3 /3.2 |
| 150 X 50 X 17 |
2.3 /3.2 |
| 150 X 65 X 17 | 2.3 /3.2 |

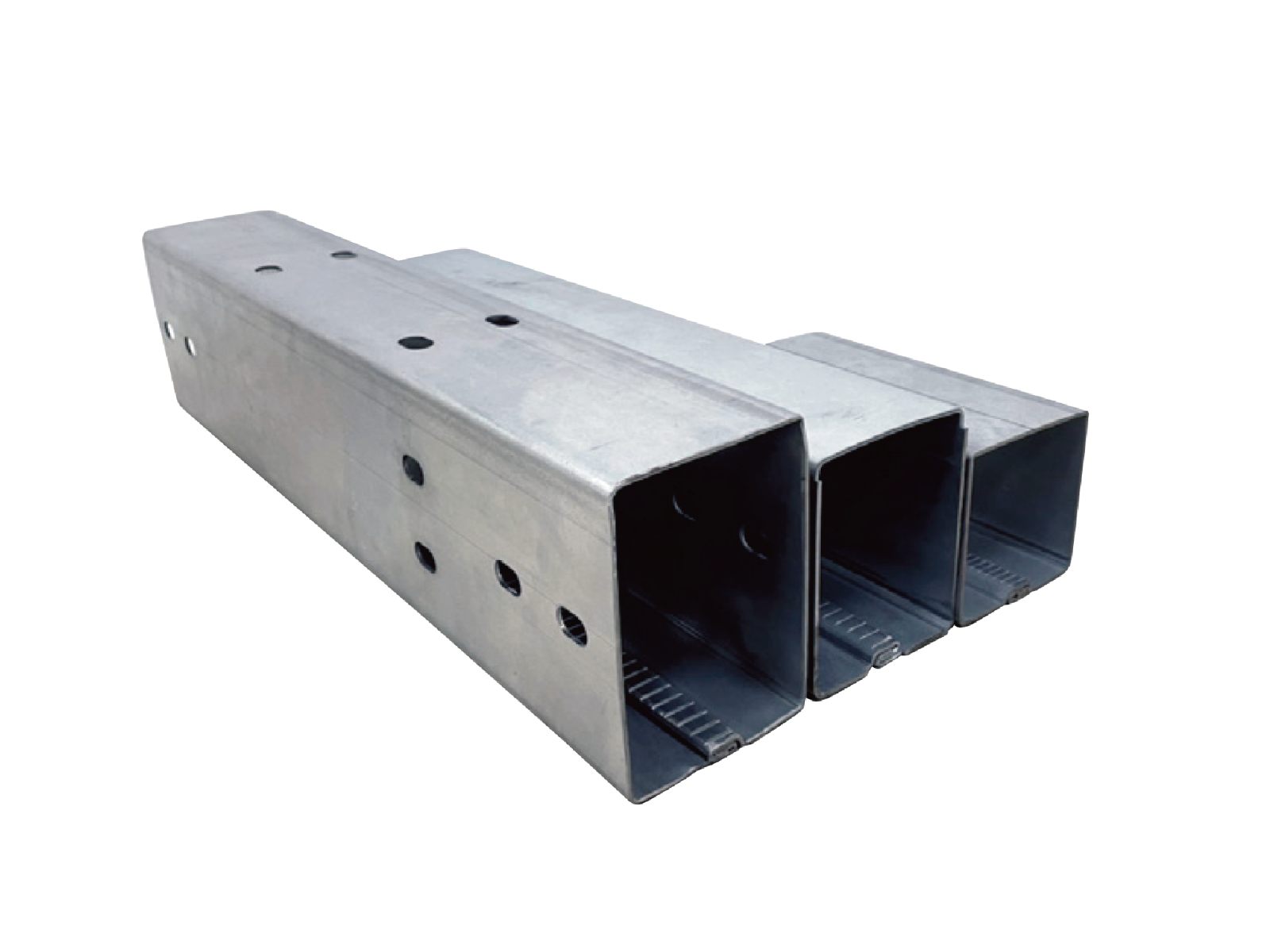

Square steel
| Product Specification(mm) |
Thickness(mm) |
| 100 X 100 | 2.3 |
| 125 X 100 | 2.3 |
| 150 X 100 | 2.3 |

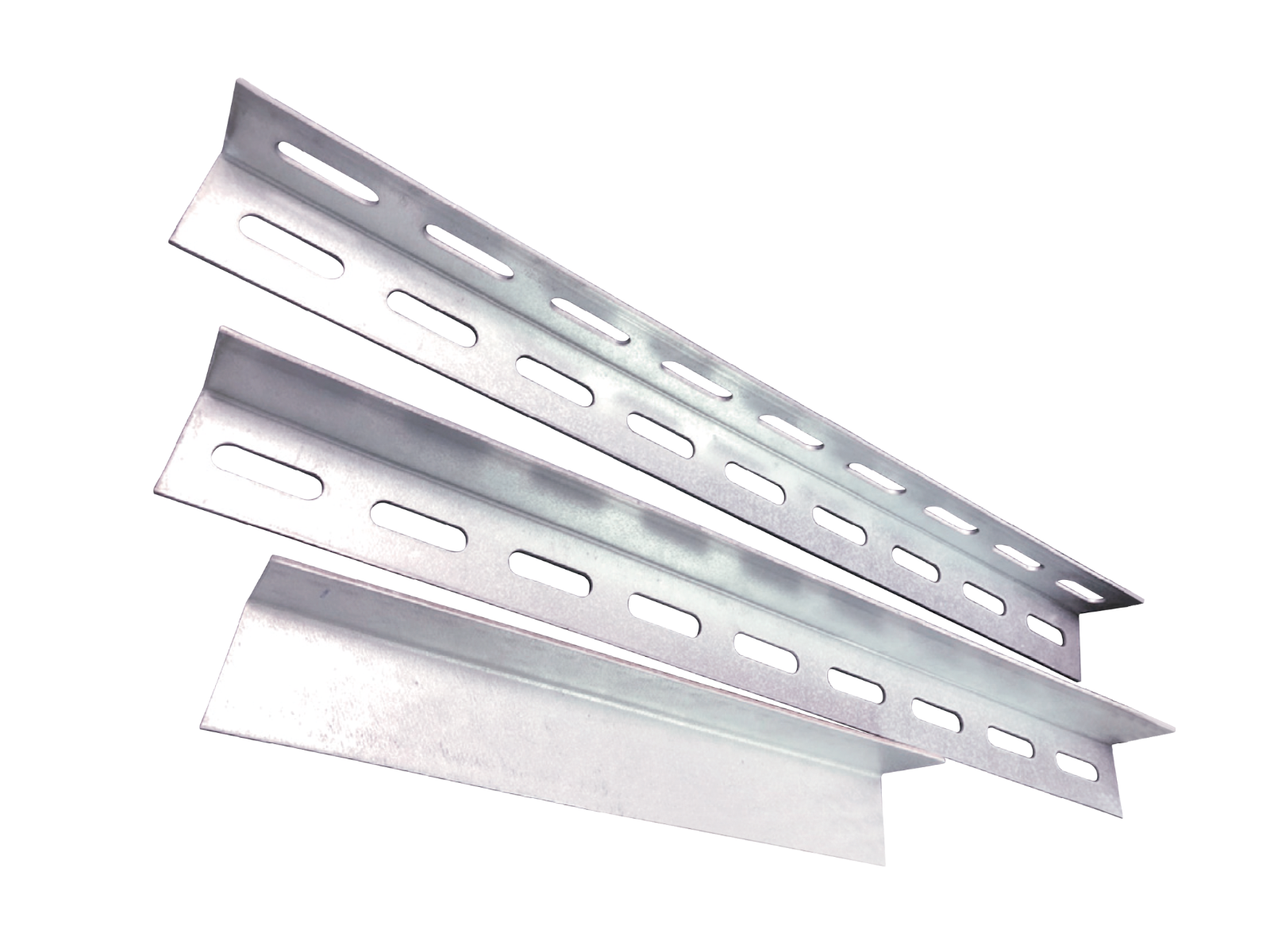

Angle steel
| Product Specification(mm) |
Thickness(mm) |
| 35 X 35 | 1.6 |
| 41 X 41 | 2.3 / 3.2 |

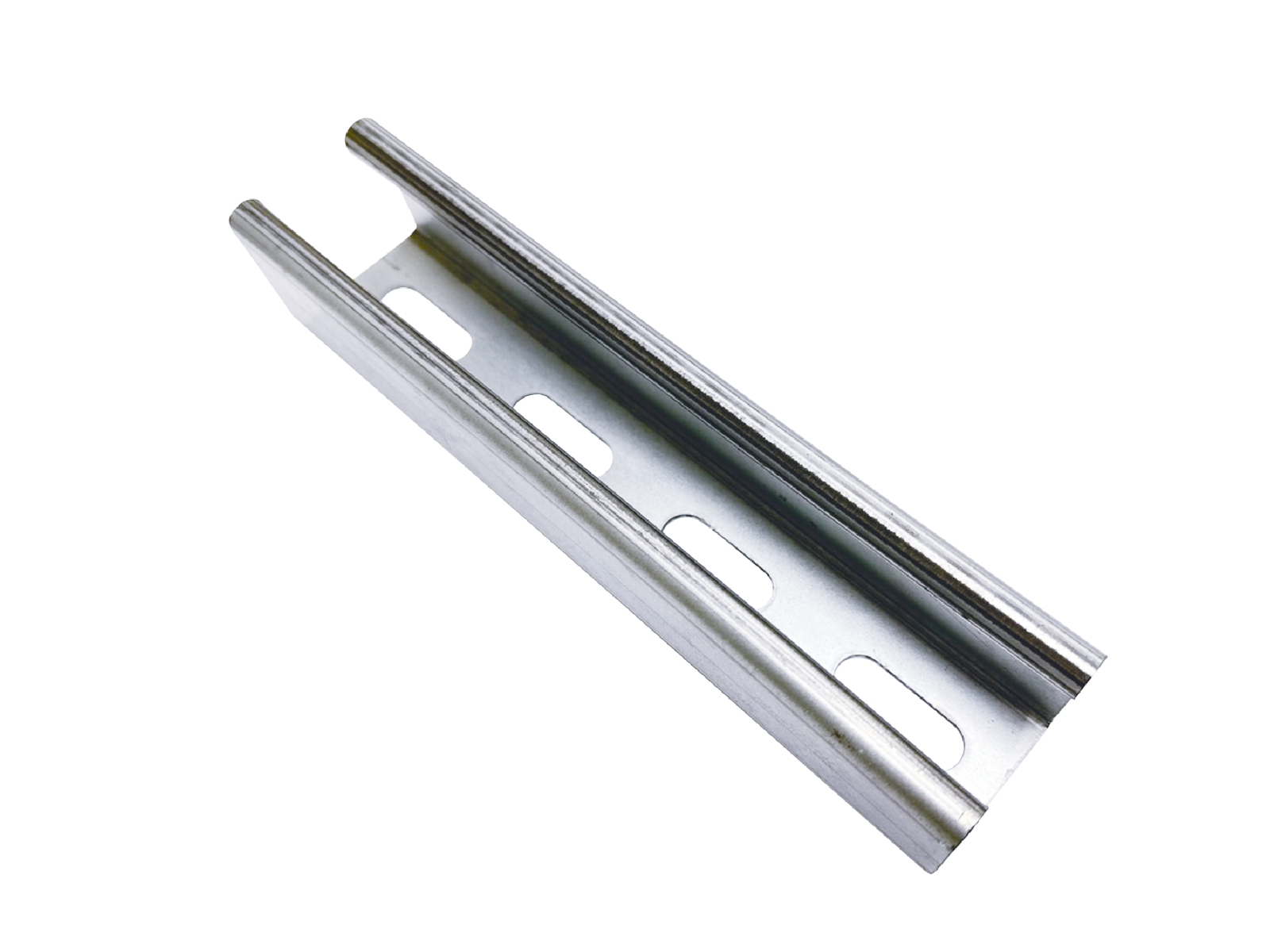

U rail
| Product Specification(mm) |
Thickness(mm) |
| 41 X 41 |
1.6 |

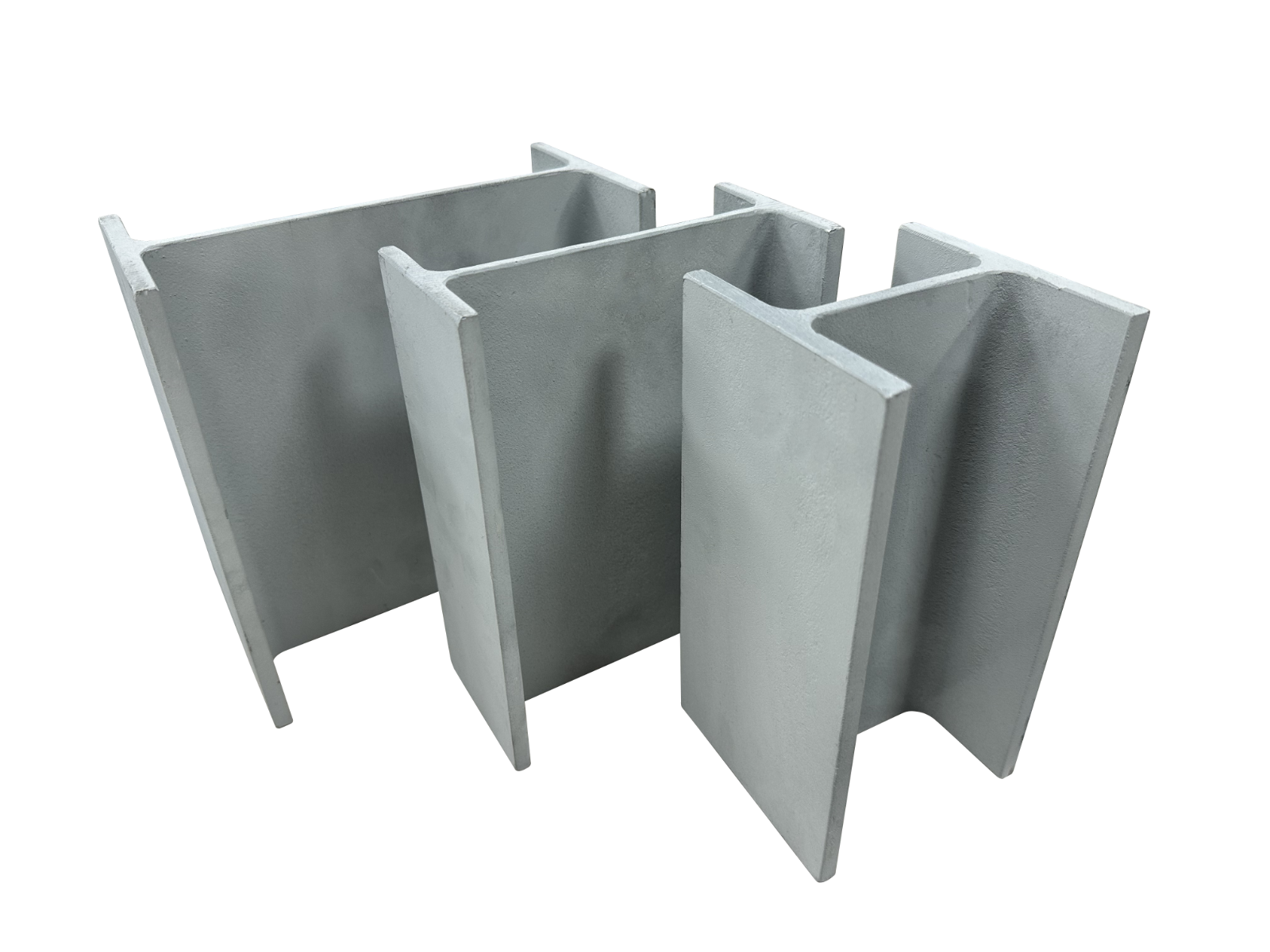

H-beam
| H X B(mm) | t1(mm) | t2(mm) | r(mm) |
| 100 X 50 | 5 | 7 | 8 |
| 100 X 100 | 6 | 8 | 8 |
| 125 X 60 | 6 | 8 | 8 |
| 125 X 125 |
6.5 | 9 | 8 |
| 148 X 100 | 6 | 9 | 8 |
| 100 X 150 |
7 | 10 | 8 |
| 175 X 90 | 5 | 8 | 8 |
| 169 X 125 |
5.5 | 8 | 12 |
| 175 X 175 | 7.5 | 11 | 13 |
| 198 X 99 |
4.5 | 7 | 8 |
| 194 X 150 | 6 | 9 | 8 |
| 200 X 200 |
8 | 12 | 13 |
| 250 X 125 | 6 | 9 | 8 |
| 248 X 249 |
8 | 13 | 13 |
| 298 X 149 | 5.5 | 8 | 13 |
| 298 X 299 |
9 | 14 | 13 |
| 294 X 200 | 8 | 12 | 13 |

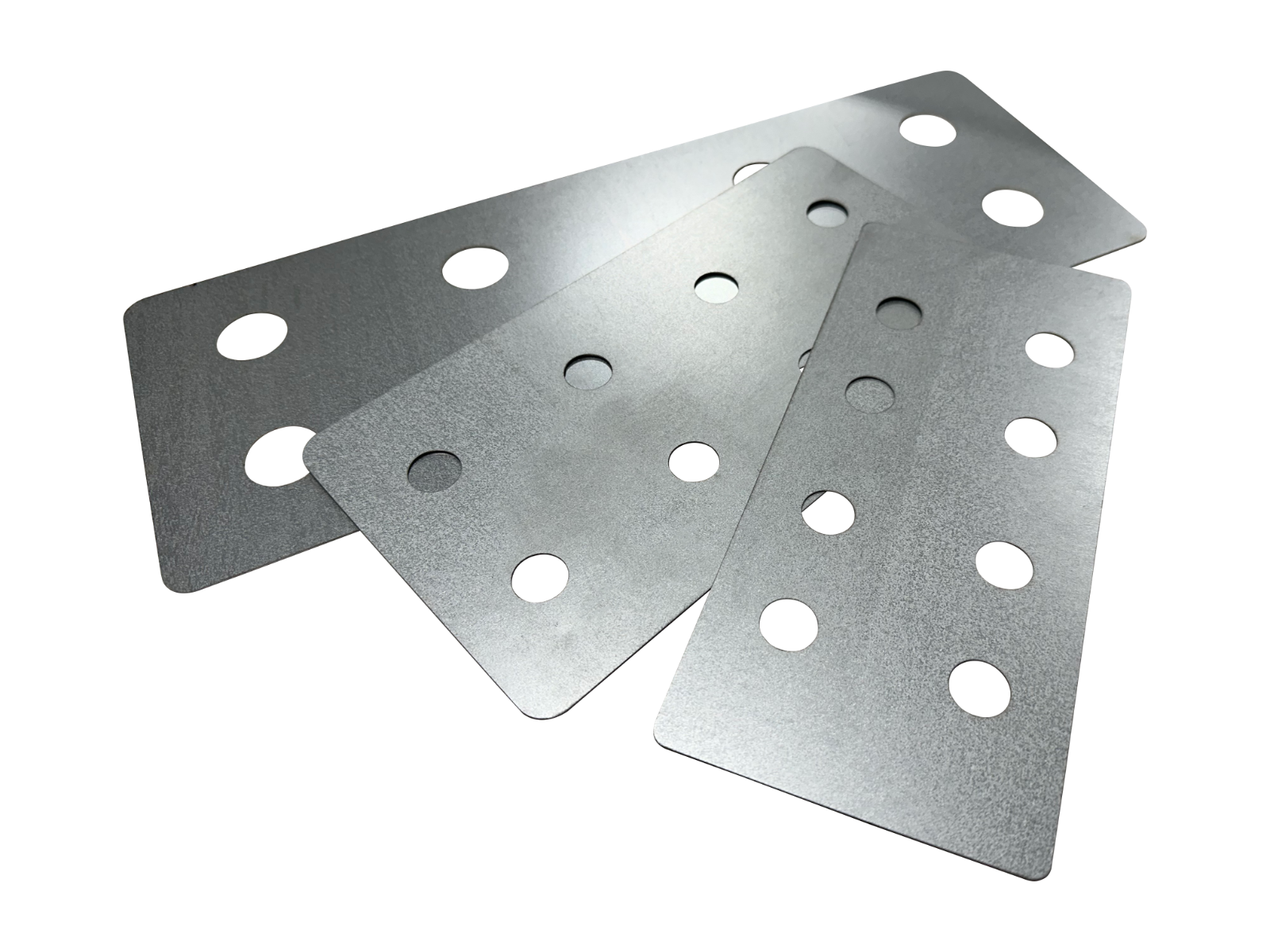

Steel Plate
Grounding Accessories
Grounding Accessories: Ensure system safety and reduce the risk of electric shock.

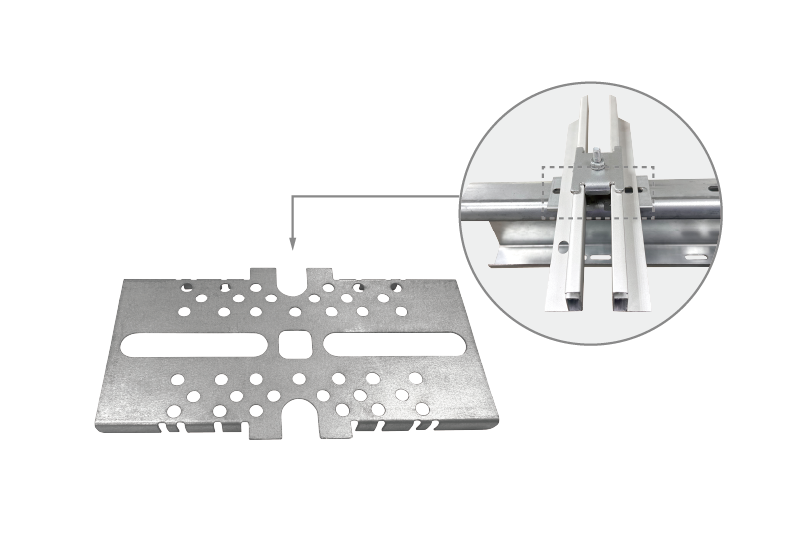

JDP-11
| Weight(g) |
Dim. W X H X D (mm) |
| 20 | 110 X 60 X 5.3 |

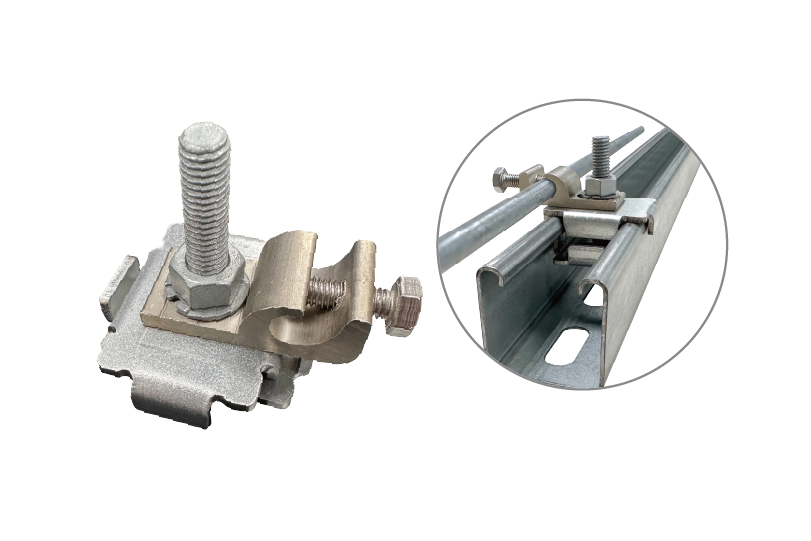

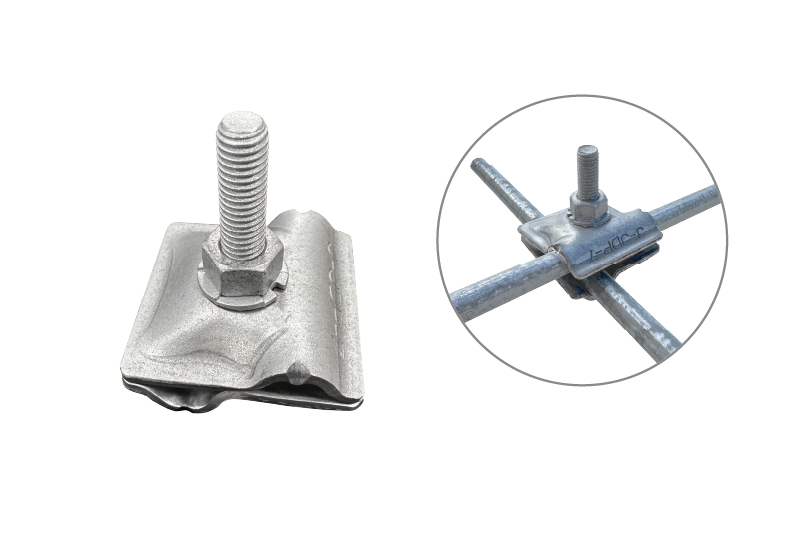

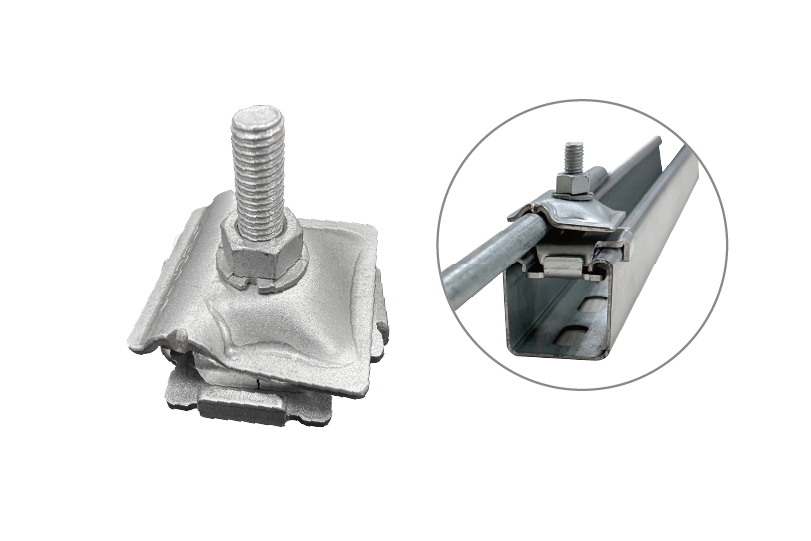

Grounding components
Litp-1
| Weight(g) |
Dim. W X H X D (mm) |
| 126 | 48 X 48 X 55 |
Litp-2
| Weight(g) |
Dim. W X H X D (mm) |
| 92 | 43 X 43 X 56 |
Litp-3
| Weight(g) |
Dim. W X H X D (mm) |
| 114 | 72 X 48 X 55 |
Solar Panel Wire Clip
Thickness: 0.6mm
Material: SUS304
| Product Specification |
Weight |
| 2 X 4 mm wires | 3 g/pc |
